Product Line · 113 Models
113 catalogued PoE switches spanning 10/100M smart models, gigabit unmanaged and L2+ managed lines, 2.5G and 10G uplink series, 802.3bt high-power models and AI watchdog switches for surveillance networks.
The standard PoE switch line is the largest in the ONV catalogue — 113 models. It is organised by the questions buyers actually ask: how many ports (4 to 48 PoE ports), how much power (65W desktop budgets to 600W rack budgets, 30W per port as standard, 90W on bt models), how fast (10/100M, gigabit, 2.5G and 10G uplinks), and how much control (unmanaged, smart, Easy managed, L2+ managed and L3 managed).
Two surveillance-specific sub-lines run through the range. The 250-metre models drop selected ports to 10M to carry a camera feed up to 250 metres over Cat5 — beyond the standard 100-metre copper limit. The AI PoE models add a watchdog that detects a failed powered device and restarts its PoE supply automatically, cutting site visits for frozen cameras.
Every model in the table below is listed under its official product name. Port-count pages in this section break the range down further, and the featured-model tables quote datasheet values — switching capacity, forwarding rate, MAC table, power budget — exactly as published.
Gigabit models from the 113-model PoE switch catalogue (official product names).
| Model | Official product name |
|---|---|
| ONV-POE33018PFM | Gigabit 18-port L2+ managed PoE switch |
| ONV-POE33026PFM | Gigabit 26-port L2+ managed PoE switch |
| ONV-POE33032PL | Gigabit 3-port PoE switch |
| ONV-POE33006PFM | Gigabit 6-port L2+ managed PoE switch |
| ONV-H3064P | Gigabit 6-port PoE switch |
| ONV-H3108P | Gigabit 10-port PoE switch |
| ONV-H3064PS | Gigabit 6-port PoE switch |
| ONV-H3108PS | Gigabit 10-port PoE switch |
| ONV-POE33020PFM | Gigabit 20-port L2+ managed PoE switch |
| ONV-POE33028PFM | Gigabit 28-port L2+ managed PoE switch |
| ONV-POE33108PFG | Gigabit 10-port PoE switch |
| ONV-H53054PFDM | Gigabit 6-port Easy managed PoE switch |

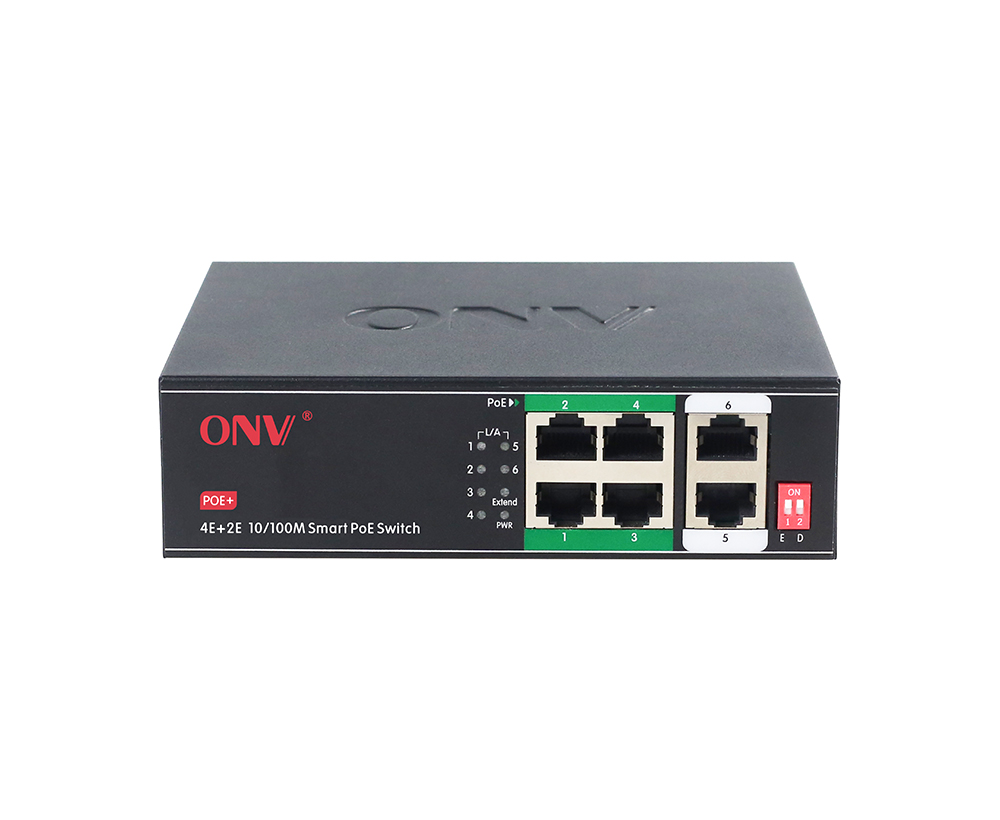

At the compact end, the ONV-H1064PLD shows the pattern of the smart line: 4 PoE ports plus 2 uplinks, 30W per port, a 65W built-in supply, and the two-position function switch — E for 250-metre long-distance transmission with VLAN isolation, D for the PoE watchdog that restarts a failed device automatically.
| Parameter | Datasheet value |
|---|---|
| PoE ports | Port 1–4, IEEE 802.3 af/at |
| Uplink ports | 2 × 10/100Base-TX RJ45 |
| Max power per port | 30W |
| Total PoE power | 65W (built-in PSU, AC100–240V) |
| Switching capacity | 1.6 Gbps (non-blocking) |
| Forwarding rate | 0.89 Mpps @64byte |
| Long-distance mode | 10M / 250 meters transmission (function switch E) |
| PoE watchdog | Function switch D: auto-restarts a failed powered device |
| Dimensions | 142.5 × 115 × 40 mm |
| Operating temperature | -20°C to +55°C |
| Certification (datasheet) | CE mark, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
Work through the range in this order: port count first (the sub-pages below split the line into 4, 8, 16, 24 and 48-port classes), then per-port power (802.3af/at 30W covers most cameras and access points; 802.3bt is for PTZ domes, high-power APs and LED displays), then management (see the managed vs unmanaged guide), then uplink speed. A switch that aggregates more than a dozen gigabit camera ports should have at least a gigabit uplink — and a design with several access switches should step up to the 10G uplink models.
The range is built for IP surveillance first — camera networks in retail, warehousing, campuses and public spaces — and extends to wireless coverage (powering access points), access control and IP telephony. See the CCTV and IP camera solution pages for worked configurations.
Smart models are plug-and-play with hardware function switches (long-distance mode, watchdog, VLAN isolation). Easy managed models add a light web interface for port and PoE control. L2+ managed models add full VLAN, QoS, ring, SNMP and security feature sets, and the L3 series adds routing. The right level depends on whether the network is installed once or operated continuously.
The gigabit and industrial lines are built around IEEE 802.3 af/at with up to 30W per port; the bt models extend this to the 802.3bt standard with up to 90W per port. Each model's datasheet states its exact standard support — check the featured tables or ask for the datasheet of a specific model.
Yes — any af/at port can power any standards-compliant powered device. Budget the total wattage: add up every device's draw and compare with the switch's total PoE budget, which is printed in each datasheet.
Send your port count, per-port power and uplink requirements — we reply with the exact models, datasheets and a quotation. MOQ and lead time are confirmed per model and order scope in the quotation.
Up to 90W per port for PTZ domes and high-power devices.
Camera runs beyond the 100-metre copper limit.
